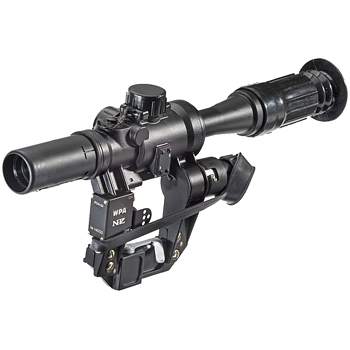

The PO 4x24 is a classic Soviet-design scope made famous on the SVD Dragunov sniper rifle. Fielded around the world, it has proven to be extremely rugged and reliable though decades of harsh use. A true military design, it features a highly versatile fixed 4x magnification and a wide 6 degree field of view. Rifleman will appreciate the easy to use reticle which features mil marks for lead/windage corrections and rangefinding, bullet drop compensation marks, and no-math telemetric range finder. The illuminated reticle is powered by a common AA battery. Elevation and windage adjustments are made by finger adjustable turrets which feature precise audible and tactile clicks. Easily removable snap-on covers protect the turrets from accidental rotation. These are retained by lanyard so you don’t have to worry about losing them.
The PO 4x24 features a proven optical system with a 24mm objective lens. This provides a large 6mm exit pupil. Optical performance is excellent with a bright image, accurate color rendition and sharp resolution. Low light performance is also very good. A novel integral sliding sunshade can be pulled out when required and slid back for storage. Plus a removable rubber eye-cup serves to ensure the shooter’s head position is the same for each shot. The PO 4x24 also features an integral quick-detach system. This allows the optic to be quickly mounted/dismounted with the flip of a lever without losing serious. The P0 4x24-1 is designed to mount onto SVD/Tigr, PSL, and M76 rifles.
Detail Information:
• Classic European turret design with audible and tactile adjustments
• Illuminated reticle powered by a standard AA battery for use in low light
• Quick detachable mounting system
• Wide field of view and bright image
• Robust construction with excellent optical performance
• User friendly reticle with telemetric rangefinder
• Integral retractable sunshade
Product | WPA Performance Optics PO4x24-1 Military Classic Series Optical Sight |
---|---|
Magnification | 4x |
Field of View | 6 degrees |
Exit Pupil Diameter | 6 mm |
Eye Relief | 2.6i n |
Objective Range | 24mm |
UPC | 645611620430 |
