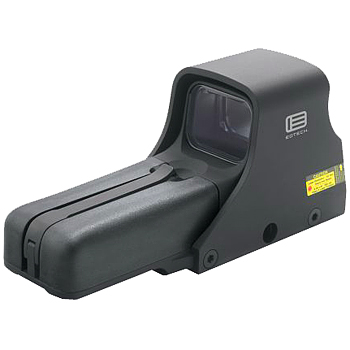

EoTech Sight 552 Holosight

EOTech 552 Specifications Night Vision Compatability

The EOTech Model 552 HOLOgraphic Weapon Sight (HWS) is fully compatible with all generation levels of night vision intensifier tubes. A special night vision (NV) setting allows the operator to immediately drop the brightness intensity of the holographic reticle to eliminate any "halo" effect while viewing through an image intensifier tube. The EOTech M552 can be positioned in tandem behind night vision intensifiers without any "bloom" of the target area. Now, operators can combine the proven night vision technological advantage with a superior close quarters weapon optic to achieve greatly enhanced weapon aiming - in complete darkness.

Unlike active IR laser pointer systems, the HWS is a passive system and emits no muzzle-side signature. While in the NV mode, the HWS not detectable by enemy night vision surveillance systems, providing operators with a stealth means for effective nighttime weapon aiming.

The EOTech M552 unique switch allows the operator to instantly drop the holographic reticle's brightness to the NV mode of operation. The operator has the ability to toggle back and forth between the NV mode and the normal day/night operation within fractions of a second. The EOTech M552 has 10 distinct night vision settings to provide maximum flexibility to the operator. Typically 3 to 4 brightness settings are not enough to support a host of constantly changing conditions including manufacturing variances in the sensitivities of the image intensifier tubes, varying ambient environments, and varying light gathering sensitivities of the human eye across users. The M550 still maintains the 20 normal brightness settings for normal day/night operations.

The typical configuration is with both the monocular night vision system and the HWS mounted in tandem on the weapon's receiver. Operators can also witness the holographic reticle with head/helmet mounted monocular night vision image intensifier systems, even on a partial cheekweld on the weapon's stock. This allows the operator added flexibility and greater versatility when deploying with night vision systems in the ever changing battlefield environments.

Field of View: Aimpoint Comp and EOTech HWS

The EOTEch advantage is clear to see. EOTech's HWS's field of view is nearly 4 times as wide as the Aimpoint Comp M2's. The greater field of view means improved situational awareness and faster threat identification. The HWS offers 10 night vision reticle settings compared to the Aimpoint Comp's four settings.

The HWS uses state-of-the-art digital electronics design. Twenty brightness levels ensure proper brightness control in either low light or very bright sunlight. An on-board microprocessor provides automatic battery check indicator, up/down brightness scrolling and programmable auto shutdown features. All electronics are fully encapsulated in shock absorbing resin compound.

The HOLOgraphic Advantage

The holographic patterns have been designed to be instantly visible in any light, instinctive to center regardless of shooting angle, and to remain in view while sweeping the engagement zone. Reticles are designed as large, see-through patterns to achieve lightning quick reticle to target acquisition without covering or obscuring the point of aim.

Heads Up, Full View

The HWS employs a true Heads-Up Display that eliminates blind spots, constricted vision, or the tunnel vision associated with tubed sights. All user controls are flush to the HWS's streamline housing with no protruding knobs, battery compartments or mounting rings blocking vision at the target area. True, 2 eyes open shooting is realized. Instant threat identification is achieved by maximizing the operator's peripheral vision and ultimately gaining greater control of the engagement zone.

The Magic of Holography

In holography, all the information required to reconstruct the reticle image is recorded everywhere in the Heads-Up display window. If the window is obstructed by mud, snow, rain, etc., the HWS remains fully operational , with point of aim/impact being maintained. Even in such extreme cases where the laminated window is shattered, the HWS is fully functional! As long as the operator can see through any portion of the window, the entire reticle pattern is visible on target...the operator can still engage with confidence.

Specifications
Optics:	Transmission holography - 100% parallax Free
Magnification:	1x unlimited eye relief
Length/Width/Height:	AA’ model 5” x 1.8” x 2.25
Field of View @ 100yds (ft):	3.8 - 3.1
Weight	‘AA’ model 11.5 oz
Temperature:	-20 to 150F (operating); -40 to 160F (storage)
Sealing:	Waterproof (submersible) & fogproof
Color/Finish:	Non-reflective black with hard coat finish
Adjustment (per click):	0.5" at 100 yards
Adjustment Range:	+/- 40 MOA travel
Mount:	1" Weaver Dovetail / Picatinny rail (Mil-Spec 1913)
Return to Zero:	Repeatable to 1 MOA after remounting
Warranty:	2 Years
Heads-Up Display Window
Optics Surfaces:	Anti-glare and scratch resistant coatings
Window Dimensions:	1.20" x 0.85" (30 x 23 mm)
Window Material:	Shatterproof laminate (3/16" thick)
Field of View @ 100 yards:	30 yards (28m) at a 4" eye relief
Standard reticule:	65 MOA ring with quadrant ticks with a 1 MOA Aiming dot
Reticule Contrast Ratio:	28,000:1 brightest to lowest
Night Vision Contrast Ratio:	10,000,000:1 with NV switch engaged
Electrical
Power Source:	2 x "AA" batteries (supports lithium, alkaline or rechargeable)
Battery Life:	AA batteries: 600 hours, AA Lithium: 1100 hours
Brightness Settings:	20 settings with scrolling feature
Auto Battery Check Indicator:	Flashing reticle upon startup if batteries are at 20% of battery life
Auto Shutdown	At 8 hours - programmable to 4 hours

Quantity	1+
Price	$499.00
On Sale!	$459.00
In Stock and Free Shipping
